Acrylic Museum Display Case Security Standards: 2026 Guide
Table of Contents
- Why Acrylic Museum Display Case Security Standards Matter
- Acrylic vs Glass Display Cases: Security and Clarity Compared
- Attack Resistant Display Cases: Locks, Screws and Fixings
- Museum Display Case Specifications: Thickness and Load
- Meeting Government Indemnity and Conservation Standards
- Maintenance, Testing and Environmental Integration
- Choosing the Right Secure Acrylic Display Case
- Frequently Asked Questions
Last Updated: September 14, 2026
Why Acrylic Museum Display Case Security Standards Matter
Acrylic museum display case security standards are the technical and procedural requirements that determine how a transparent case protects its contents from theft, vandalism and environmental damage while keeping them visible. For curators and collectors, getting them right is the difference between a secure exhibit and an insurance claim.
At Acrylic Display uk, we have manufactured acrylic and Perspex display cases for over 30 years, and the questions we field most often are about security, not aesthetics. A case that looks the part but uses a basic friction catch or 3mm glazing offers little protection against a determined attack. Below we break down material choice, locking systems, thickness, load-bearing limits and maintenance routines.
UK Government Indemnity Scheme guidance
Acrylic vs Glass Display Cases: Security and Clarity Compared
Acrylic outperforms glass on impact resistance, weight and shatter behaviour, while glass holds a slight edge on scratch resistance and long-term clarity in high-traffic environments. For most museum and collectible applications, laminated acrylic or polycarbonate glazing is the better security choice.
Impact Resistance and Shatter Behaviour
Glass cracks into sharp shards when struck: contents become instantly accessible and debris risks objects and visitors. Acrylic flexes under impact and, when it fails, breaks into larger, less dangerous pieces. Polycarbonate absorbs blows that would crack acrylic of the same thickness. A common mistake is assuming any clear plastic offers this benefit, thin, unpolished sheet behaves very differently from a properly specified case.
Optical Clarity and UV Protection
Optical clarity matters because visitors need to see fine detail without distortion. Museum-grade acrylic transmits light cleanly and can include UV-stabilising additives that slow yellowing and protect sensitive artefacts. UV protection is not optional for textiles, paper, dyed materials and many pigments, but it degrades over time, so a case specified for a ten-year display period needs its glazing checked periodically, not assumed permanent.
Attack Resistant Display Cases: Locks, Screws and Fixings
Attack resistant display cases combine tamper-proof locks, security screws and concealed fixings so no single component can be defeated quickly. The goal is delay: every extra minute an attacker needs raises the chance of detection.

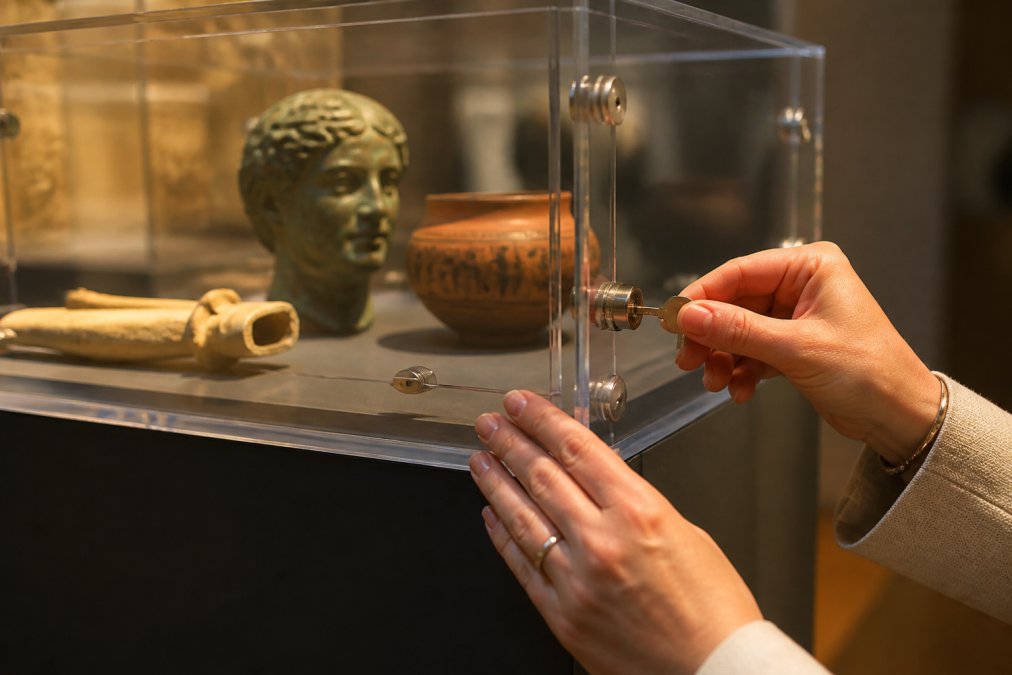

Cam locks are the most common mechanism on acrylic cabinets, and a well-fitted cam lock with two keys suits most retail and collectible applications. For higher-value exhibits, master-key systems across multiple cases simplify staff access while restricting who can open what. Security screws replace standard fasteners so a panel cannot be unscrewed with a household tool. Vandalism mitigation also depends on anchoring, a locked case that can be lifted and carried away offers no protection at all.
- Cam locks: standard security for cabinets and memorabilia cases
- Keyed-alike or master-key systems: multi-case access control
- Security screws: prevent panel removal with common tools
- Concealed hinges and fixings: remove obvious weak points
- Base anchoring: stops the whole case being removed
Museum Display Case Specifications: Thickness and Load
Museum display case specifications typically call for glazing between 5mm and 10mm depending on span, load and risk level. Thicker glazing resists impact better but adds weight, raising demands on the frame and base.
Glazing Thickness and Structural Integrity
Structural integrity is a function of thickness, span and support. A shelf spanning 400mm carries far less static load than one spanning a metre, and acrylic deflects gradually under sustained weight. Tensile strength and impact resistance improve with thickness, but only if the case is braced correctly. With removable shelves, each shelf has its own load-bearing limit, independent of the case as a whole.
| Consideration | Light-duty case | Museum-grade case |
|---|---|---|
| Glazing thickness | 3-5mm | 5-10mm |
| Lock type | Cam lock | Cam lock or keyed system |
| Fixings | Standard screws | Security screws |
| Shelf support | Fixed | Fixed or removable, rated |
| UV protection | Optional | UV-stabilised |
| Best for | Retail, low-value items | Artefacts, high-value collectibles |
A practical example from our own range: the Display Case glass look acrylic cabinet with cam lock uses 5mm shatterproof polished acrylic with two removable shelves and a cam lock with two keys. That specification suits models, ornaments and jewellery. For heavier or more valuable pieces, the Display Cabinet 5mm Perspex Acrylic Lock 2 Keys & Removable Shelves offers a hinged lockable door across a range of sizes.
Meeting Government Indemnity and Conservation Standards
Government Indemnity provides cover for objects on loan to eligible institutions, and its standards shape case specification directly. Cases in qualifying displays must demonstrate appropriate security, environmental control and documented construction. Conservation standards add a second layer: materials touching or near artefacts must be inert or barrier-treated, and display environments must limit light, humidity fluctuation and off-gassing.
UK Government Indemnity Scheme guidance
Arts Council England guidance on Government Indemnity
What Indemnity Standards Actually Require of a Case
The scheme does not publish a single glazing thickness or lock specification. Instead it sets outcomes the borrower must demonstrate, and the case is one part of that evidence. A case put forward for an indemnified loan is assessed against four questions:
- Physical security, can the case resist or delay forced entry, and is it anchored so it cannot be removed whole? Locks, fixings and base anchoring are considered together.
- Environmental stability, does the case buffer humidity and temperature fluctuation, and does its glazing filter UV? Sealed construction and UV-stabilised acrylic are the usual answers.
- Material compatibility, are the case materials, adhesives, seals and shelf linings inert or barrier-treated so they do not off-gas or react with the object? This is where conservation and security standards overlap.
- Documentation, can the borrower produce a written specification, a materials list and a maintenance schedule if asked? Undocumented construction is a common reason a case fails assessment even when the hardware is sound.
Treat the case specification sheet as part of the loan paperwork: record glazing type and thickness, lock type, fixings, anchoring method and cleaning regime. That record turns a well-built case into demonstrable compliance.
Conservation Requirements That Affect Security Design
Preventative conservation underpins both: rather than treating damage after it occurs, the case is designed to prevent it with UV-stabilised glazing, sealed construction, stable shelving and secure but reversible mounting. Display environment control and artefact preservation are therefore security concerns as much as conservation ones, because an object damaged by poor housing is lost just as surely as one stolen.
Three conservation requirements have direct security consequences:
- Reversible mounting, objects should be held by mounts that can be removed without damage. This rules out permanent adhesives and forces the designer to think about how a mount is fixed to a shelf without creating a weak point in the case.
- Barrier materials, shelf linings, gaskets and adhesives must not release volatile compounds. Inert materials such as polyethylene, polyester and certain acrylics are the usual choices; some rubbers and PVC-based seals are not.
- Light control, UV filtering is not optional for textiles, paper, dyed materials and many pigments. UV-stabilising additives in acrylic slow yellowing and protect sensitive artefacts, but they degrade over time, so a case specified for a ten-year display period needs its glazing checked periodically rather than assumed permanent.
Maintenance, Testing and Environmental Integration
Security integrity degrades quietly: locks loosen, hinges wear, glazing yellows and fixings work free, none of it visible until it fails. Most guides stop at the initial purchase; the gap is year three, year five and year ten. This section sets out a repeatable way to test an existing acrylic case for security degradation and integrate that testing with environmental monitoring.
A Standardised Testing Protocol for Acrylic Cases
There is no single British Standard for acrylic museum cases, so practitioners borrow test methods from glazing, furniture and security hardware standards and apply them consistently. The point is not to replicate a laboratory but to run the same checks the same way each time so change is detectable.
A workable quarterly protocol has five checks:
- Lock function test, operate every lock and key five times. Note any stiffness, any key that needs jiggling, and any lock that does not throw fully. A cam lock that has started to bind is usually a sign the door has dropped on its hinges, not that the lock itself has failed.
- Hinge and fixing torque check, with a hand screwdriver, test each visible fixing for movement. Do not overtighten; the goal is to detect a fixing that has worked loose. Any fixing that moves by hand should be logged and re-checked at the next audit.
- Panel and lid movement test, with the case closed and locked, apply light hand pressure to each panel and to the lid or door. A panel that flexes more than it did at installation indicates a failed seal, a loose fixing or a cracked edge.
- Glazing inspection, check for crazing, edge cracks, clouding and yellowing. Hold a white card behind the glazing under normal gallery light; a yellow cast against white is the simplest field test for UV-stabiliser degradation.
- Shelf load check, compare the current contents against the shelf's rated load. Contents creep upward over time as objects are added, and a shelf that was within rating at installation may not be now.
Impact and Drop Testing Explained
Museum-grade acrylic is specified partly on impact behaviour. Two test types are commonly referenced:
- Pendulum impact tests, a weighted striker swings into a clamped sample of glazing, and the energy at which the sample cracks or shatters is recorded. This is the method used in glazing impact standards and is the closest analogue to a deliberate blow with a heavy object.
- Drop tests, a known mass is dropped from a set height onto a supported sample. This is more representative of an object being dropped onto a case lid, or of a case being knocked during handling.
The practical takeaway is not to run these tests in-house, but to ask a supplier what impact performance their glazing has been tested to, and record that figure alongside the thickness. Thickness alone does not determine impact resistance; formulation, temperature and edge condition all matter.
Environmental Security Integration
Environmental security integration means physical security and environmental control are monitored together, because a case that is secure but environmentally unstable still fails its purpose. Three integrations are worth building in:
- Vibration and tamper sensors, small accelerometer-based sensors can be mounted inside the case frame to detect a strike, a pry attempt or an attempt to lift the case. They are most useful when linked to the same alarm zone as the gallery's perimeter detection, so a single event triggers a single response.
- Humidity and temperature logging, a data logger inside the case records conditions continuously. The security value is that a sudden humidity spike often indicates a seal failure or a door left ajar, both of which are also security events.
- Light and UV monitoring, a UV-sensitive dosimeter or a light logger confirms that glazing is still filtering as specified. This is the environmental counterpart to the white-card glazing check above.
None of these replace the physical checks. They supplement them by catching the slow failures between audits.
Cleaning Without Compromising Security
Acrylic clarity is a maintenance item, not a permanent property. Clean with a soft cloth and mild soap solution only, never abrasive cleaners or solvents, which cloud the surface. Two security-specific points are often missed:
- Do not remove panels to clean behind them unless the cleaning procedure includes re-checking the fixings on reassembly. A panel removed and refitted without a torque check is a common source of a later loose fixing.
- Do not use silicone-based polishes on or near locks. They attract dust into the mechanism and can cause a cam lock to bind within a season.
Cases kept out of direct sunlight and cleaned correctly hold their clarity far longer than neglected ones. The audit log and the cleaning log should be the same document, so that a cleaning visit and a security check are never separated.
Photograph each case at installation and at every audit. A side-by-side comparison of the same panel under the same light is the fastest way to spot yellowing, crazing or a door that no longer sits flush.
Choosing the Right Secure Acrylic Display Case
Match the specification to the risk, not the budget alone. A retail display holding low-value stock needs a cam lock and 5mm glazing. A museum case holding loaned artefacts needs documented materials, UV-stabilised glazing, keyed access control and a maintenance schedule.
Retrofitting security is possible on many existing cases through upgraded locks, security screws and base anchoring, but it has limits. If the glazing is too thin or the frame is not load-rated, no new hardware fixes the underlying weakness. Work through the decision in this order:
- Identify the highest-value item the case will hold
- Set the glazing thickness from its weight and shelf span
- Choose a locking system that matches the access needs of staff
- Confirm the case can be anchored or is heavy enough to resist removal
- Build the maintenance and audit routine before the case is installed
For bespoke dimensions, curved fronts or multi-shelf configurations, working with a manufacturer who builds to your measurements avoids the compromise of forcing contents into catalogue sizes. Our Display case cabinet curved clear acrylic with 4 shelves and individual hinged doors shows how individual door access can be built into a single case, so only the relevant section is opened during handling.
Frequently Asked Questions
What are the security requirements for museum display cases?
Security requirements for museum display cases focus on physical resistance and controlled access. Cases should use tamper-proof locks, security screws and shatter-resistant glazing. For Government Indemnity, cases must meet specific standards for attack resistance and environmental control. Thickness matters too: 5mm acrylic offers good impact resistance for most exhibits, while higher-risk items may need thicker glazing or laminated glass. Regular security audits help maintain integrity over time.
Is acrylic or glass better for high-security museum displays?
Acrylic outperforms glass in impact resistance and shatter behaviour. It flexes rather than shattering, which reduces injury risk and protects artefacts from flying fragments. However, glass offers superior scratch resistance and optical clarity over time. For high-security displays, 5mm shatter-resistant acrylic with a cam lock is a practical choice. Acrylic also weighs less, making it easier to handle and retrofit into existing cases.
How does thickness affect the security of an acrylic display case?
Thickness directly impacts structural integrity and attack resistance. A 5mm acrylic panel provides a good balance of rigidity and weight for most museum and retail displays. Thicker panels (10mm or more) resist bending and forced entry better but add cost and weight. For load-bearing shelves or large cases, thickness must be calculated against the static load of the contents. Under-thickness glazing can bow or crack under pressure.
What standards should museum display cases meet in the UK?
UK museum display cases should meet Government Indemnity Scheme standards, which cover security, environmental control and conservation. Cases must protect against vandalism, theft and environmental damage. Conservation standards require UV-filtered glazing and stable materials. For security, tamper-proof locks and attack-resistant glazing are essential. The standard also expects documented maintenance and testing protocols to ensure ongoing compliance.
Specifying a secure acrylic display case means balancing impact resistance, locking, thickness and maintenance against the value of what sits inside. Acrylic Display uk manufactures bespoke and standard cases from 5mm shatterproof acrylic with UV stabilisation, cam locks and removable or fixed shelving, all built in our own facility and quality checked before dispatch. Get started with Acrylic Display uk and specify a case built to your dimensions, your contents and your security requirements.
